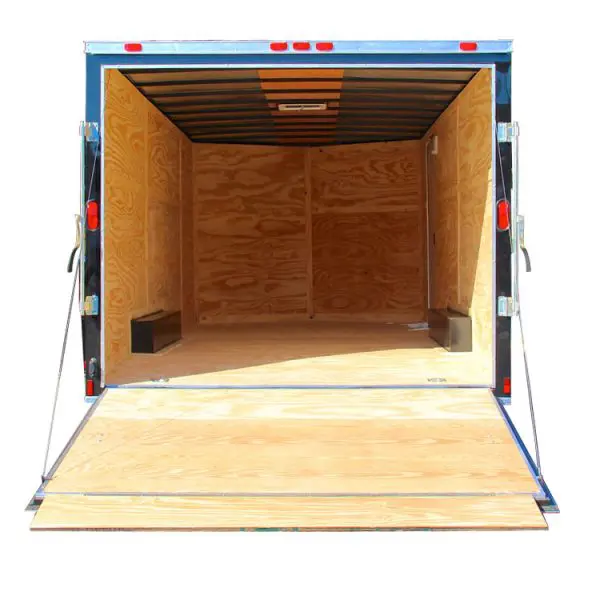

8.5×16 Diamond Cargo Tandem Axle Trailer

$6,700.00

  • 5-Year Factory Warranty
  • 1.5” Tube Steel Sidewalls & Roof Members
  • Your Choice of SIX Colors with Matching Exterior Screws
  • Heavy-Duty Spring Assisted Rear Ramp Door with Flap or Double Doors
  • Ramp has 4,500 lb. Standing Weight & 5,500 lb. Rolling Capacity
  • Standard Interior Height 78” (6’ 6”) with Rear Opening Height of 75” (6’ 3”)
  • Rear Opening Width 91.5”
  • Interior Width (between walls) 8’0”
  • Overall Height (without vent) approx 98.5”
  • Interior Length: 16’ Box with 2’ Additional V-Nose
  • Tandem 3500# USA-made Lippert Axles w/ Electric Brakes Both Axles
  • Piano-Hinge 36” Side Door with Flush Mount Lock – Dead Bolt Easily Locked/Unlocked from Inside of Trailer
  • Door Tie Back and Door Chain Included
  • Exterior Grade Plywood Flooring
  • Your Choice of SIX Colors with Matching Exterior Screws
  • Heavy-Duty Spring Assisted Rear Ramp Door with Flap or Double Doors
  • Ramp has 4,500 lb. Standing Weight & 5,500 lb. Rolling Capacity
  • 6” Tubular Steel Main Frame Rails
  • 16” On-Center Cross (Floor) Members
  • 24” On-Center Roof Members – STRONG TUBULAR STEEL
  • 16” On-Center Sidewalls – STRONG TUBULAR STEEL
  • Triple Rear Lighting, All Lighting DOT Approved
  • 15” Eight-Ply Bias Tires (ST205) Load Range C Silver Modular Rims
  • High Tech Undercoating Frame Paint
  • ¾” SUPERIOR GRADE Plywood Flooring with No Show Beaver Tail
  • 3/8” SUPERIOR GRADE Plywood Walls
  • Premium Grade Aluminum Exterior with Baked Enamel Finish with Matching Exterior Screws
  • Galvalume Roof with High Tech Sealant with Center Luan Strip
  • SLIGHTLY ROUNDED FOR WATER AND SNOW RUNOFF
  • ATP ( Aluminum Tread Plate) Covered Step Well
  • (4) 5,000 lb. Floor Mounted D-Rings
  • 7-Way Electric Plug Connector with Break-Away Kit with Battery
  • 2 5/16” Coupler on A-Frame Draw Bar with Heavy Duty Safety Chains
  • 2,000 lb. A-Frame Jack with Sand Foot
  • Aluminum Tear Drop Fenders
  • E-Z Lube Hubs with Grease Cap – Easy to Maintain!
  • Covered License Plate Bracket with Light
  • Door Chain/Tie Back on Side Door
  • Non-Powered Roof Vent and 12 Volt Dome Light
  • 24” Aluminum Tread Plate (ATP) on Front
  • Drop Axles (Lowers Trailer about 4″)
  • Axle Capacity: 7,000 lbs. less Gross Weight of Trailer: 2800 lbs.= Payload Capacity of Trailer: 4200 lbs.

Available on backorder

What Options For 8.5×16 Enclosed Trailer Do You Need?

We manufacture 8.5×16 Enclosed Trailer in standard trailer sizes or we can custom build a trailer size for you. Trailer Options & Pricing

Call Our Trailer Sales Representative at 912-551-5566 and get your custom 8.5×16 Enclosed Trailer order started today!

Get the 8.5×16 Enclosed Trailer that will Meet Your Needs

Getting the 8.5×16 Enclosed Trailer that will meet your needs and having it equipped properly is the key to making a satisfactory purchase. We will help you design and build a custom 8.5×16 Enclosed Trailer that fits your needs.

If you need to check the Cargo Trailer Options Pricing then share your specifications with details with one of our sales representatives through email at sales@diamondcargotrailers.org.

You can also reach us by simply filling the Contact form.

We will estimate your total expenses and let you know about the cost. After your approval, we instantly start working on your cargo trailers in our Georgia based factory. You can expect the delivery of your new enclosed cargo trailer in a period of weeks.

Custom High Quality 8.5×16 Enclosed Trailer Builds

Our 8.5×16 Enclosed Trailer built in South Georgia come in many different sizes and shapes- you can specify extra height, different cargo retention configurations, custom door placement, and colors.

During the manufacturing of your custom enclosed cargo trailer, our team, out of South Georgia, pays close attention to all the details you specify to ensure you receive a top quality built enclosed cargo trailer.

With high-quality plywood used inside the cargo trailer, we guarantee no damage to the interior of your cargo.

Also, we make sure that the trailers for sale are delivered to you after a thorough testing by our experienced team members. Our sole aim is to provide our customers a trailer that lasts for years and meet their requirements.

To make custom order for enclosed trailers for sale in GA, Call Our Trailer Sales Representative at 912-551-5566.
