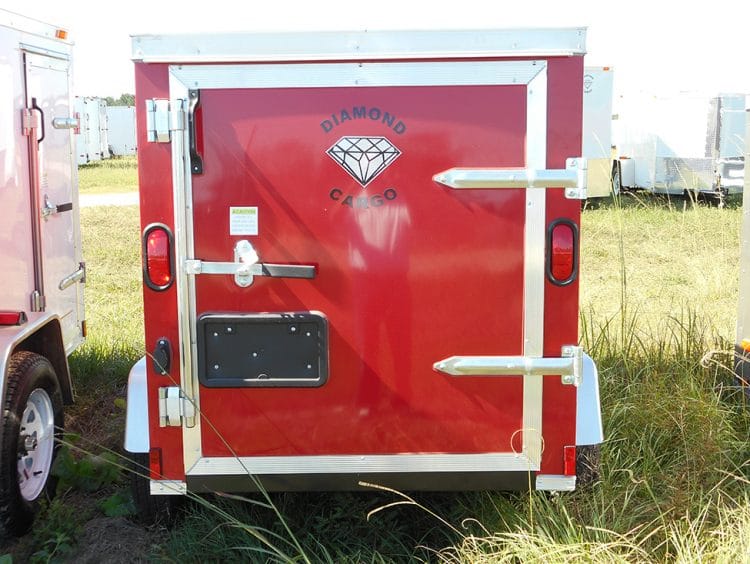

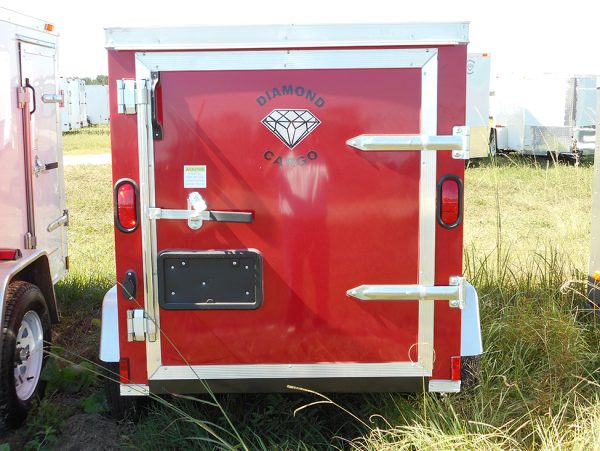

4×6 Enclosed Trailer – V Nose Cargo Trailer

$2,650.00

Diamond Cargo Trailer 4′ x 6′ Specifications

  • 5-Year Factory Warranty
  • 1.5” Tube Steel Sidewalls & Roof Members
  • Your Choice of SIX Colors with Matching Exterior Screws
  • Single Swing Rear Door with Bar Lock
  • Standard Interior Height 48” (’ 0”) with Rear Opening Height of 55” (3’ 9”)
  • Interior Length: 6’ Box with 2’ Additional V-Nose
  • 3’9” Interior Width
  • Overall Height Is 68.5” Without Vent
  • 37.5” Rear Opening Width
  • Single 3500# USA-made Lippert Axle (Rated at 2990# for DOT)
  • Exterior Grade Plywood Flooring
  • 3” Tubular Steel Main Frame Rails
  • 24” On-Center Cross (Floor) Members
  • 24” On-Center Roof Members – STRONG TUBULAR STEEL
  • 16” On-Center Sidewalls – STRONG TUBULAR STEEL
  • Triple Rear Lighting, All Lighting DOT Approved
  • 13″ Radial Tires Silver Modular Rims
  • High Tech Undercoating Frame Paint
  • ¾” SUPERIOR GRADE Plywood Flooring with No Show Beaver Tail
  • 3/8” SUPERIOR GRADE Plywood Walls
  • Premium Grade Aluminum Exterior with Baked Enamel Finish with Matching Exterior Screws
  • Galvalume Roof with High Tech Sealant with Center Luan Strip
  • Roof Slightly Rounded for Water and Snow Runoff
  • ATP ( Aluminum Tread Plate) Covered Step Well
  • 4-Way Flat Plug Connector with Break-Away Kit with Battery
  • 2” Coupler on A-Frame Draw Bar with Heavy Duty Safety Chains
  • 2,000 lb. A-Frame Jack with Sand Foot
  • Aluminum Tear Drop Fenders
  • E-Z Lube Hubs with Grease Cap – Easy to Maintain!
  • Covered License Plate Bracket with Light
  • 12 Volt Dome Light
  • 24” Aluminum Tread Plate (ATP) on Front
  • Drop Axles (Lowers Trailer about 4″)
  • Axle Capacity: 2990 lbs. less Gross Weight of Trailer: 800 lbs.= Payload Capacity of Trailer: 2190 lbs.

Available on backorder
