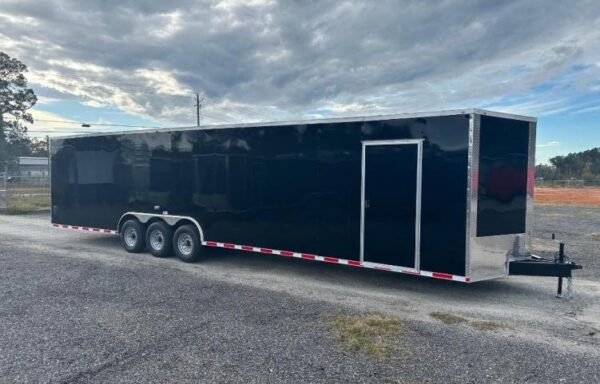

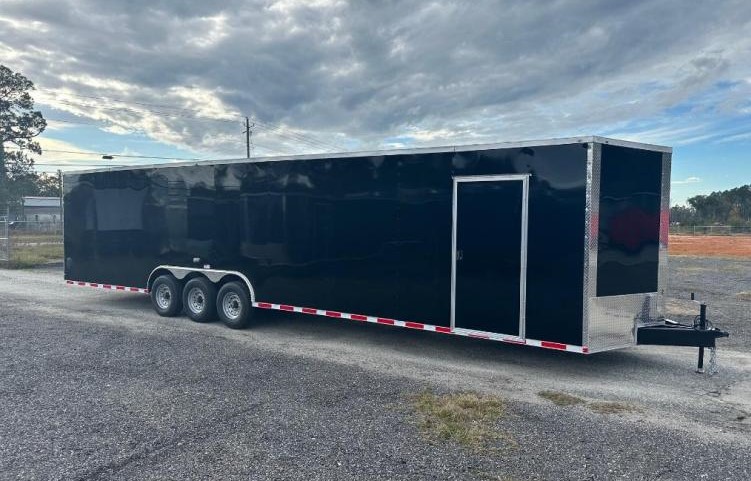

8.5×36 Diamond Cargo Triple Axle Car Hauler

$11,935.00

  • .080 Polycore Exterior (Semi-screwed)
  • 7′ (84″) Interior Height
  • Triple 6000lb USA Made Lippert Drop Leaf Spring Axles with Electric Brakes
  • Heavy Duty Ramp Door w/ Spring Assist & 16″ Extension Flap
  • 1.5″ x 1″ Steel Tube in Walls and Ceiling
  • 8″ Steel Tube Main Frame
  • 16″ OC Members (Floor/Walls/Ceiling)
  • 7-way Round Bargman Plug
  • 2 5/16″ Coupler
  • Therma-Ply Ceiling
  • No Show Beavertail
  • (4) 5000lb D-Rings Welded to Frame
  • 36″ RV-Style Side Door w/ Flush Lock, Bar Lock over RV Door
  • Door Hold Back
  • 24″ Stoneguard on Front
  • Plastic Sidewall Vents
  • (2) 12V LED Dome Light with Switch
  • ST205 15″ Radial Tires
  • ATP Front & Rear Corners
  • Silver Painted Wheels
  • 3/4″ Plywood Floor/Undercoated
  • Premium 3/8″ Plywood Sidewalls
  • Triple Tube Tongue & E-Z Lube Hubs
  • 5000 lb A-Frame Tongue Jack w/ Sand Foot
  • One Piece Aluminum Roof
  • LED Full Light Package incl. Rear Loading Light
  • ATP In Stepwell
  • (2) Rear Door Handles
  • Empty Weight: 5000 lbs
  • GVWR: 15600 lbs
  • Load Capacity: 10600 lbs

Available on backorder
